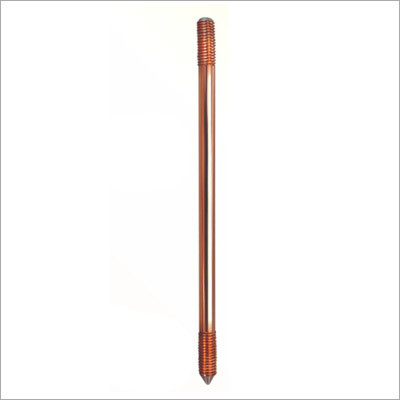

Having a definite quality management system, we are considered as the reliable manufacturer and supplier of a wide assortment of Welded Copper Bonded Rod. Perfectly bonded with the copper, these products are useful in providing highly economical and excellent rod grounding system. This range of rods can be availed in varied sizes, diameters, lengths and specifications to meet with the requirements of our customers. Also, the Copper Bonded Rods are offered to our customers at the most reasonable rates.
Dimension Rod Size | Length in feet | Actual Rod Dia | Thread Dia | Product Code |
(DIA x LENGTH) | | | | |
9.5 x 1200 | 4 | 9.5 | - | G02-ER - 012 |
(UN - THREADED) | | | | |
9.5 x 1800 | 6 | 9.5 | - | G02-ER - 018 |
(UN - THREADED) | | | | |
14 x 1200 | 4 | 12 | 14 | G02-ER - 1412 |
14 x 1500 | 5 | 12 | 14 | G02-ER - 1415 |
14 x 1800 | 6 | 12 | 14 | G02-ER - 1418 |
14 x 2000 | 6.66 | 12 | 14 | G02-ER - 1420 |
14 x 2400 | 8 | 12.7 (UL) | 14 | G02-ER - 1424 |
5/8x 4 | 4 | 14.2 | 5/8 | G02-ER - 112 |
16mm x 1200 | | | | |
5/8x 5 | 5 | 14.2 | 5/8 | G02-ER - 115 |
16mm x 1500 | | | | |
5/8 x 6 | 6 | 14.2 | 5/8 | G02-ER - 118 |
16mm x 1800 | | | | |
5/8x 8 | 8 | 14.2 (UL) | 5/8 | G02-ER - 124 |
16mm x 2400 | | | | |
5/8x 10' | 10 | 14.2 (UL) | 5/8 | G02-ER - 130 |
16mm x 3000 | | | | |
5/8x 4 | 4 | 16 | 5/8 | G02-ER - 312 |
16mm x 1200 | | | | |
5/8x 5 | 5 | 16 | 5/8 | G02-ER - 315 |
16mm x 1500 | | | | |
5/8x 6 | 6 | 16 | 5/8 | G02-ER - 318 |
16mm x 1800 | | | | |
3/4x 4 | 4 | 17.2 | 3/4 | G02-ER - 212 |
19mm x 1200 | | | | |
3/4x 5 | 5 | 17.2 | 3/4 | G02-ER - 215 |
19mm x 1500 | | | | |
3/4x 6 | 6 | 17.2 | 3/4 | G02-ER - 218 |
19mm x 1800 | | | | |
3/4x 8 | 8 | 17.2 (UL) | 3/4 | G02-ER - 224 |
19mm x 2400 | | | | |
3/4x 10 | 10 | 17.2 (UL) | 3/4 | G02-ER - 230 |
19mm x 3000 | | | | |
