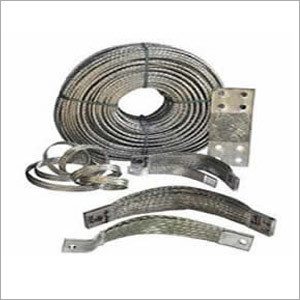

Tinned Copper Braids

Tinned Copper Braids
Tinned Copper Braids
Send Inquiry
Product Code : 06
Product Description

Owing to our wealthy industry knowledge and acquaintances, we manufacture and supply optimum quality Tinned Copper Braids. The offered products are non-corrosive in nature as these are covered with high quality copper placed around a cable. Available in varied sizes and dimensions, our offered range has gained immense popularity across the country. Our expert professionals oversee our team members to manufacture as per the market laid parameters and norms. We offer the Tinned Copper Braids in sealed packages to ensure damage free and safe supply.

Technical Specifications for Tinned Copper Braid:

Nominal area mm Dimension mm Wire diameter mm Current rating amps Product Code
2.5 6 x 1.00 0.15 36 BO2-FB - 2.5-36
4 10 x 1.00 0.15 52 BO2-FB - 4-52
6 12 x 1.00 0.15 66 BO2-FB - 6-66
10 15 x 1.50 0.15 90 BO2-FB - 10-90
16 19 x 2.00 0.15 120 BO2-FB - 16-120
25 25 x 3.00 0.15 150 BO2-FB- 25 -150
35 25 x 3.50 0.15 200 BO2-FB- 35 -200
50 30 x 4.50 0.15 250 BO2-FB- 50 -250
70 32 x 5.00 0.15 300 BO2-FB- 70 -300
95 37 x 5.00 0.15 350 BO2-FB- 95 -350
120 45 x 5.00 0.15 400 BO2-FB- 120 -400
150 50 x 6.00 0.15 500 BO2-FB- 150- 500
